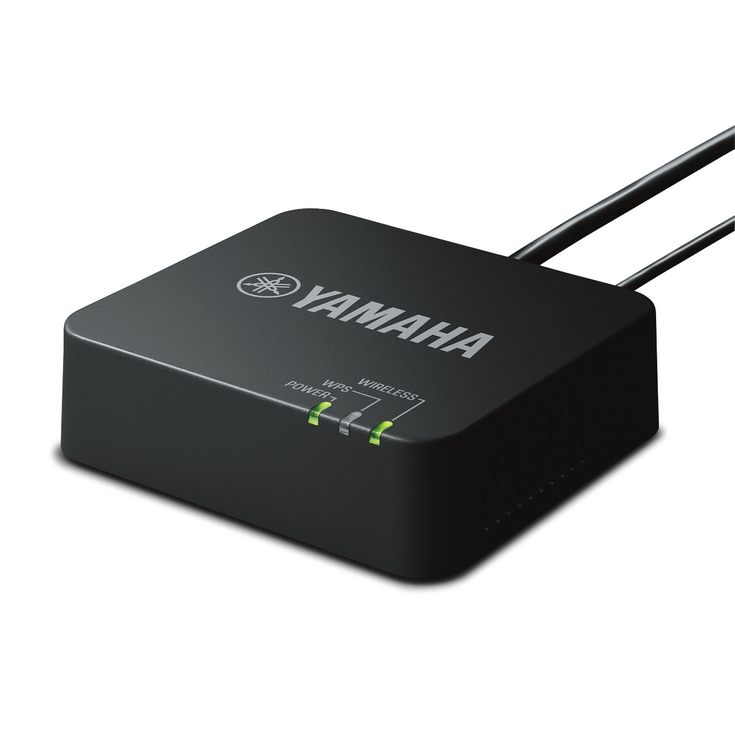

Wireless Network Adapter YWA-10 allows Yamaha AV products equipped with a NETWORK port and a DC OUT jack (USB) to be connected with a wireless LAN.
Can be scrolled
| CD Player | Network Section | DLNA | Version1.5 |
|---|---|---|---|
| File Format | MP3, WMA, AAC, WAV, FLAC | ||
| Audio Sample Rate | (MP3/WMA/AAC) 8, 11.025, 12, 16, 22.05, 24, 32, 44.1, 48kHz (WAV/FLAC) 8, 11.025, 12, 16, 22.05, 24, 32, 44.1, 48, 64, 88.2, 96, 176.4, 192 kHz | ||
| Bit Depths | 16 bit, 24 bit (WAV/FLAC file only) | ||
| Disc Compatibility | CD-DA, CD-R, CD-RW (MP3, WMA) | ||
| Output Level | 2.0 ± 0.3 V (1 kHz, 0 dB, Fs 44.1 kHz) | ||
| Signal-to-Noise Ratio | 110 dB | ||
| Dynamic Range | 100 dB | ||
| Harmonic Distortion | 0.003% | ||
| Frequency Response | (CD) 2 Hz-20 kHz, (Network; Fs 192 kHz) 2 Hz-96 kHz | ||
| Output | Optical; 1, Coaxial; 1 | ||
| DC out | Yes | ||
| Power Consumption | 10 W | ||
| Dimensions (W x H x D) | 435 x 86 x 260 mm; 17-1/8” x 3-3/8” x 10-1/4” | ||
| Weight | 3.2 kg; 7.1 lbs. | ||
