Waves SoundGrid Interface Card
- 24-bit sample resolution
- Supports both native/generic and emulation modes of the YGDAI interface
- Record to two computers simultaneously
- Extremely low-latency networking platform for processing, playback and recording
- Connects to SoundGrid systems and SoundGrid-compatible devices
- Supports 44.1, 48, 88.2 & 96 kHz sample rates
- 16 I/O channels of audio at 44.1/48 kHz; 8 I/O channels of audio at 88.2/96 kHz
- Clock Sync over Ethernet (SoE) for digital splits and audio networking
- Works with all consoles installed with WSG-Y16 V1 card
- Redundancy and recovery options
- Compatible with standard computers and switches
- Comes with the SoundGrid Studio Application for ASIO/Core Audio recording and playback
- MIDI control from consoles
- Add up to four cards for 64/32-channel processing and recording
Features
Run Waves Plugins Live on Your Yamaha Console
The WSG-Y16 V2 is a Mini-YGDAI card which makes it possible to run Waves plugins on selected Yamaha mixing consoles, using Waves SoundGrid technology.Together with a switch, a SoundGrid DSP server, and a Mac or PC, the WSG-Y16 V2 lets you process 16 channels of audio in super-low latency using Waves and third party SoundGrid-compatible plugins. With a rich feature set including a redundancy and recovery safety net, MIDI control from the console, plus scalability and expandability, the WSG-Y16 V2 is an essential asset to any compatible Yamaha mixing console. WSG-Y16 V2 also features clock Sync over Ethernet for syncing multiple consoles and performing digital splits.
About SoundGrid
SoundGrid is Waves' Audio-over-Ethernet networking and processing technology which provides extremely low latency, high channel-count audio processing for Waves and third party SoundGrid compatible plugins. Since it uses standard, off-the-shelf network switches, servers, and computers, it is an extremely cost-effective live sound platform.
Option
SoundGrid Server
CPUs dedicated exclusively to audio processing running a customized Linux OS that is optimized for real-time audio processing.
MultiRack SoundGrid
The host application that gives you control over Waves plugins on the SoundGrid platform. Both Mac and Windows compatible, MultiRack SoundGrid consists of virtual effects racks, each of which can contain up to eight plugins.
Waves' SoundGrid DSP Servers and Plugin Combos
WSG-Y16 v2 combos featuring SoundGrid DSP servers and fully SoundGrid-compatible plugins hand-picked especially for FOH and Monitor engineers - everything you need to take your show on the road.
Plugin Activation
In order to use Waves V9 plugins, you need to have active licenses on a computer or a USB flash drive.
Systems
Basic 16-channel system setup: one Y-16 card, one server
32-channel system setup: two Y-16 cards, one server
Basic 16-channel redundant system setup: one Y-16 card, one processing server, one backup server
Basic 16-channel system setup with MIDI control from the console: one Y16 card wired for audio and midi, one server
32-channel Recording and Playback
32-channel Processing and Recording on the same Computer

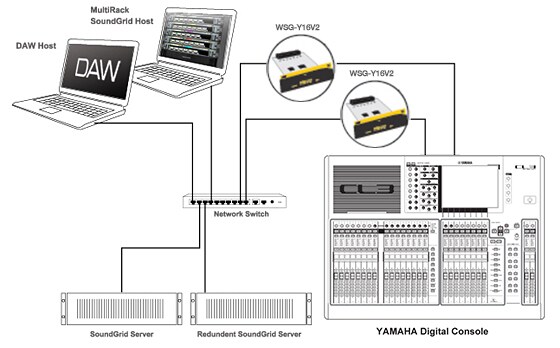

32-channel Processing and Recording on separate Computers

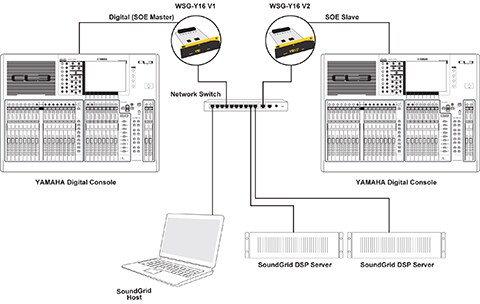

Processing, Recording and Networking with Two Consoles
SOE – Sync over Ethernet
* Specifications are subject to change without notice. The colors and finishes shown may vary from those on the actual products.
