SWP1

Lineup

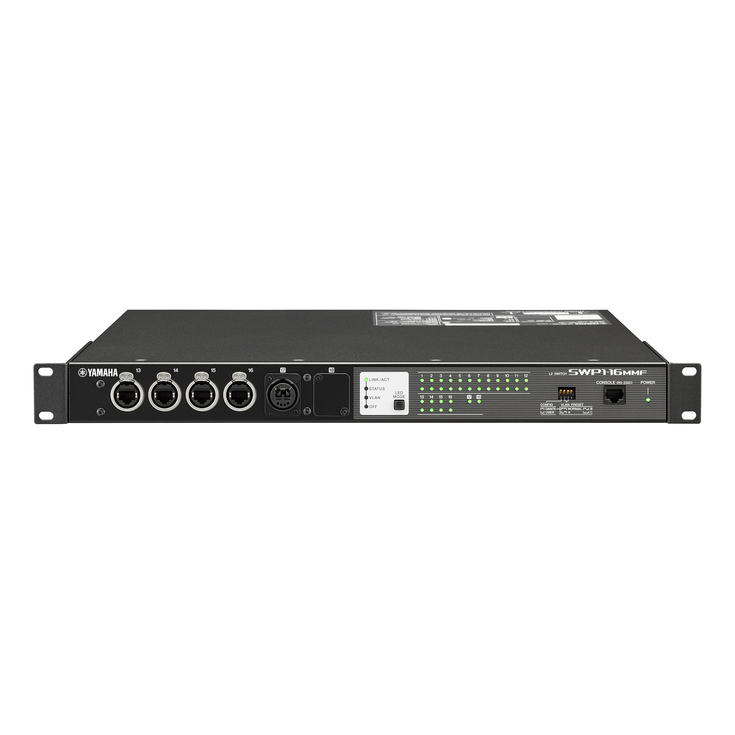

SWP1-16MMFL2 Switch

The SWP1 series L2 switch is ideal for Dante network systems. It features 12 etherCON ports, four RJ45 ports, one opticalCON port, and an option slot for one more port as needed.

etherCON Connectors: 4 front / 8 rear
RJ45 Connectors: 4 rear
opticalCON Connectors: 1 front
Optional optical module slot: 1 front
Power consumption: 16W
Dimensions (WxHxD): 480 x 44 x 362mm (18.9" x 1.7" x 14.2")
Net Weight: 4.6 kg (10.1 lbs)

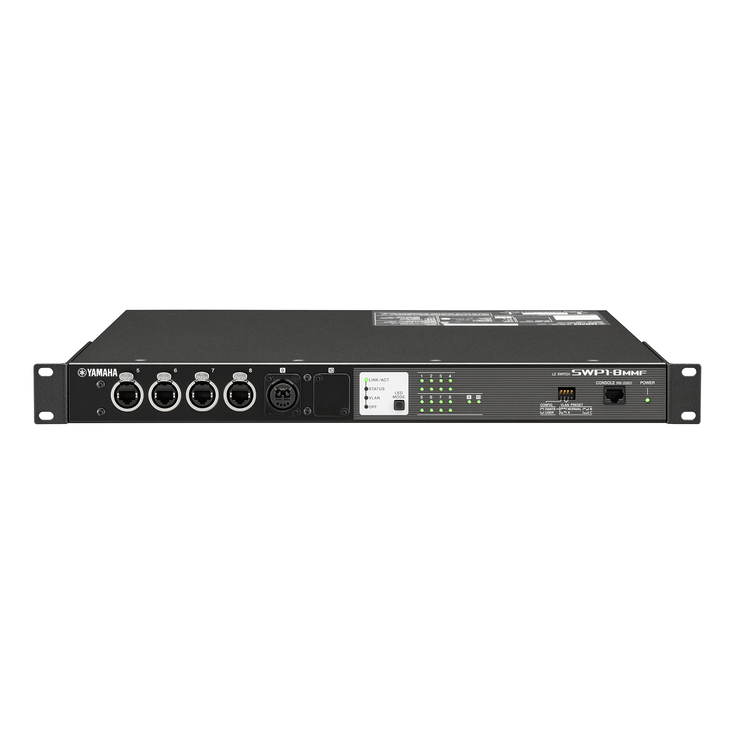

SWP1-8MMFL2 Switch

The SWP1 series L2 switch is ideal for Dante network systems. It features eight etherCON ports, one opticalCON port, and an option slot for one more port as needed.

etherCON Connectors: 4 front / 4 rear
opticalCON Connectors: 1 front
Optional optical module slot: 1 front
Power consumption: 11W
Dimensions (WxHxD): 480 x 44 x 362mm (18.9" x 1.7" x 14.2")
Net Weight: 4.2 kg (9.3 lbs)

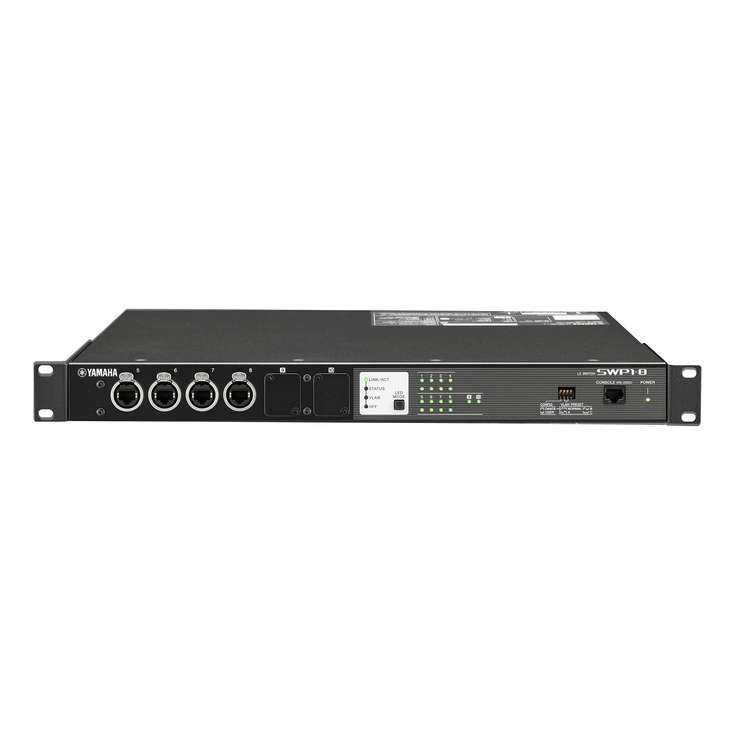

SWP1-8L2 Switch

The SWP1 series L2 switch is ideal for Dante network systems. It features eight etherCON ports and option slots for two more ports as needed.

etherCON Connectors: 4 front / 4 rear
Optional optical module slot: 2 front
Power consumption: 11W
Dimensions (WxHxD): 480 x 44 x 362mm (18.9" x 1.7" x 14.2")
Net Weight: 4.2 kg (9.3 lbs)

Options

MMF-SWP1

The MMF-SWP1 optional kit includes components necessary to install multimode optical capability with opticalCON connectors in the dedicated expansions slots provided on SWP1 series switches.

PA-700AC Adapter

AC adapter for providing redundant power supply for SWP1, SWP2, RSio64-D, and DM7 Control.

Input power voltage: AC100-240V
Output power voltage: DC24V
XLR4-11C type connector
Dimensions: 139.0(W) x 31.3(H) x 58.2(D) mm *without cables

Features

Yamaha Switches with Dante Optimization and Network Visibility

Complex network switch setup that was previously better left to an IT technician can now be easily accomplished by anyone. A simple switch setting is all it takes to optimize SWP1 series network switches for Dante operation, and a dedicated computer application called Yamaha LAN Monitor provides “network visibility” for comprehensive monitoring and control.

Yamaha first entered the network device business in 1995, and has grown to hold a significant share of Japan’s small to medium enterprise and SOHO network market. Yamaha gigabit L2 switches that could be linked to Yamaha routers/firewalls were introduced in 2011, with features that significantly reduced the network setup, maintenance, and management workload.

20 years later audio networking has become one of the fastest growing, most highly valued technologies in the live sound and pro audio fields. An expanding range of Dante capable Yamaha products, including the highly regarded CL series digital mixing consoles, continues to lead the way. SWP1 series network switches are a solution the pro audio market has been waiting for, offering an ideal balance of IT and pro audio know-how that only Yamaha can provide.

The SWP1 series makes audio network setup, monitoring, and operation easier and more convenient than ever before.

Easy Setup and Comprehensive Network Visibility

DIP Switch Dante Optimization

Simple Dante networks are not difficult to set up and operate, but as network complexity grows the switches used need to be optimized for Dante operation in order to achieve maximum stability. Setting up QoS, IGMP Snooping, and other parameters on an intelligent switch can be a complex task, requiring specialized knowledge that is more the domain of IT technicians than audio engineers. The SWP1 series allows a Dante optimized setup to be recalled by simply flipping one DIP switch. No expertise or training is required.

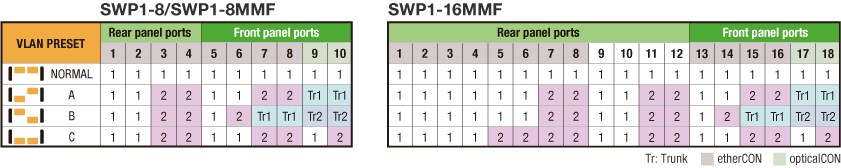

3 Preset VLAN Types

A truly efficient network should be able to handle multiple services simultaneously: Dante communication, StageMix and other smart device functions, computer software that allows digital mixer or power amplifier control, and perhaps more. But the more communication you combine on one network, the greater the chance for interference and problems. The use of virtual VLAN domains to isolate the various types of data is the ideal solution, but this type of setup also requires some IT expertise. The SWP1 series includes three VLAN presets that can be simply selected via a DIP switch. There’s also a USER mode that allows fully customized VLAN setup.

*SWP1-8 ports 9 and 10, SWP1-8MMF port 10, and SWP1-16MMF port 18 become available when the optional MMF-SWP1 is installed.

Network Visibility

Effective Dante network management hinges on a range of parameters such as network traffic, switch status, and individual Dante device information. The dedicated Yamaha LAN Monitor application provides a comprehensive single-screen view of all necessary parameters when used with SWP1 series switches. We refer to this type of graphical overview as “network visibility.” You can even take a snapshot of the normal network status and set an alarm to warn you if any of the parameters changes, so that problems can be identified and resolved quickly and easily. The Dante Controller application can also be launched from the Yamaha LAN Monitor with a single click, providing a total Dante network solution on a single computer.

Click here for more Yamaha LAN Monitor information.

*The software name of Yamaha Audio Network Monitor has been changed to Yamaha LAN Monitor.

Reliability and Connectivity

etherCON Connectors for Live Sound Reliability

Reliability is essential in live sound applications. Nothing can be allowed to interrupt the show. Conventional network switches usually have RJ45 connectors to match the connectors on the computers to which they will be connected, but the SWP1 series features durable, reliable etherCON connectors that are directly compatible with the etherCON connectors on Yamaha CL/QL series consoles and other Dante capable devices.

Optical Fiber and Network Redundancy Support (option required for redundancy)

The SWP1-8MMF and SWP1-16MMF include multi-mode fiber capable opticalCON connectors. Both models allow transmission over distances of up to 300 meters. The optional MMF-SWP1 optical fiber module can be added to allow two optical fiber cables to be run for redundant connection. Rapid spanning tree protocol (RSTP) is also supported for redundant connections.

EXT DC INPUT for Power Supply Redundancy

SWP1 series switches include an XLR-4-32 type EXT DC INPUT connector in addition to the standard AC IN connector. +24V DC supplied to the EXT DC INPUT connector provides redundant power that can keep the device running if a problem occurs in the AC supply. For further reliability the AC connector is a locking type (V-Lock) that minimizes the possibility of accidental disconnection.

Network Visibility Advantages

Yamaha SWP1 series network switches were specifically created to give users maximum benefit with the greatest possible setup and operating ease. They allow one-touch Dante optimization plus advanced network visibility while taking full advantage of Dante audio flow management capabilities. Yamaha LAN Monitor software works with the SWP1 series to allow comprehensive monitoring and management of not only any connected SWP1 series switches, but connected Dante devices as well. Yamaha’s original L2MS (Layer 2 Management Service) protocol extends “network visibility” capability to any Dante devices connected to SWP1 series switches.

Click here for more Yamaha LAN Monitor information.

*The software name of Yamaha Audio Network Monitor has been changed to Yamaha LAN Monitor.

LAN Mapping for a Complete Network Overview

Understanding how multiple switches installed in different locations are connected, plus how network devices are connected to those switches, can be a difficult, time-consuming task. The Yamaha LAN Monitor makes overall network topology clearly visible, giving the user a comprehensive overview of how multiple switches and Dante network devices are interconnected. Simply connect a computer to the nearest SWP1 switch and launch the Yamaha LAN Monitor software.

Port Status and Bandwidth Utilization

The Yamaha LAN Monitor includes a port status and bandwidth display that clearly shows the connection status of each network switch port, information about the connected devices, the communication speed at each port, and the bandwidth utilization at each port.

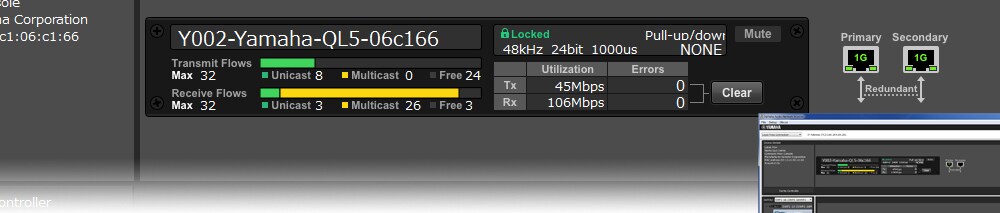

Dante Device Info

Device information and monitoring is also available for any Dante devices connected to SWP/SWR/SWX series switches on the network. The ability to monitor primary and secondary port status as well as transmit and receive flow is important to achieving stable, reliable Dante audio communication. This capability lets you keep an eye on the overall “health” of the network.

1-click Dante Controller Launch

A Dante Controller button at the top of the Yamaha LAN Monitor interface lets you launch the Dante Controller with a single click (the Dante Controller software must be installed on the computer). Seamless switching between the Yamaha LAN Monitor and Dante Controller provides total Dante network control from a single computer.

Snapshot Function Makes Troubleshooting Easy

You can take a “snapshot” of the network status when set up as required. The software can then automatically keep track of the settings and alert you to any changes. You could take a snapshot of the network during rehearsal, and then you’d be alerted if a cable is disconnected, if a device is turned off, or if a wrong connection is made prior to the performance, for example.

Enhanced Device ID with Icons, Labels, and Comments

Identifying devices connected to a switch by only their IP or MAC address is a difficult and error-prone approach. Connected Dante devices are identified by a Dante icon as well as a device ID previously set up via the Dante Controller software. You can also enter additional info, such as the location of the device, in the Label and Comment fields.

Detailed Switch Settings and Firmware Updates

The web GUI for each device can be recalled to provide access to “deep” settings and allow firmware updates.

Systems

System Examples for Enhanced Convenience and Control

SWP1 series switches not only make it easier to design and install audio network systems, but result in more convenient and controllable installations as well.

Example 1: A Simple Two Switch System

One SWP1 switch is placed on stage and one is located at the FOH position. Optical fiber connection between the switches allows reliable data transmission over distances of up to 300 meters. A computer can be connected to either switch for monitoring and management control of the entire network.

Example 2: A Redundant Dante System

Separate switches are provided for the Dante primary and secondary connections. This configuration uses twice the number of switches and cables required for a single-connection system, but in cases where failsafe reliability is essential the redundancy is well worth the extra hardware.

Example 3: Redundant Dante Network with VLAN

In this example VLAN has been set up on the SWP1 switches, with the Dante primary line assigned to VLAN1 and the secondary line assigned to VLAN2. Only two switches are needed for redundant cable connections. Optional MMF-SWP1 optical modules need to be added to the SWP1 switches to allow optical connections for each line.

Example 4: VLAN for Simultaneous Dante and Amp Protocol

In this case VLAN1 handles the Dante network while VLAN2 hosts an amp monitoring and control network. This isolates and protects amp control from Dante multicast communication.

Example 5: Optical Modules for Redundant Backbone Connections

Optional MMF-SWP1 optical modules can be installed in the SWP1 switches to allow redundant backbone connections. Link Aggregation doubles the available bandwidth for ample network margin.

Example 6: Spanning Tree Protocol for Redundancy Between Switches

Spanning Tree protocol (MSTP/RSTP/STP) can provide redundancy between switches connected in a loop. This can be used in conjunction with Dante primary/secondary redundancy for even greater reliability. *The Spanning Tree configuration cannot be recalled from the VLAN presets, but the configuration files are provided on Yamaha pro audio website for your convenience.
