Intelligent L2 switch with Dante optimization function and PoE power supply.
Lineup
SWR2100P-10GL2 Switch
The SWR2100P series network switch equipped with ten RJ45 ports.
- Ports available for PoE power supply: 1-9 / Up link port: 9 port
- Maximum 30W can be supplied from each PoE-compliant port (All ports 70W)
SWR2100P-5GL2 Switch
-
Discontinued
The SWR2100P series network switch equipped with five RJ45 ports.
- Ports available for PoE power supply: 1-4 / Up link port: 5 port
- Maximum 30W can be supplied from each PoE-compliant port (All ports 70W)
Options
RK-SWR
Rack mount accessory for SWR series switces
- Dimensions: W 482.6 mm x D 300 mm x H 44mm
- Weight: 1.7kg
- Available for SWR2311P-10G, SWR2310-10G, SWX2210P-10G, SWR2100P-10G
Features
Simple L2 Network switch with PoE
Yamaha has used its knowledge of both IT and pro audio to provide "SWR2100P series" simple L2 switch that has been optimized for networked audio installations. The switch can take advantage of "Yamaha LAN Monitor" a dedicated computer application that provides 'network visibility' for comprehensive monitoring and control.
Supplies power to PoE-enabled Dante devices on the network
The "SWR2100P series” which are simple L2 switches can supply power as well as audio and control signals to a PoE-compliant Dante device such as the paging station microphone “PGM1” through just one Ethernet cable. Since the power supply and the network wiring can be combined, the number of cables being used can be reduced, and the connection distance can be extended, so the degree of freedom of Dante device installation is increased and construction flexibility is further improved.
Comprehensive Monitoring

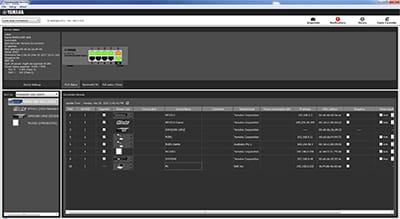

Systems built around the SWR2100P-5G or SWR2100P-10G L2 switches allow comprehensive network monitoring from the dedicated Yamaha LAN Monitor software application, with PoE power status monitoring and ON/OFF switching capability.
Complete Network Overview
Understanding how multiple switches installed in different locations are connected, plus how network devices are connected to those switches, can be a difficult, time-consuming task. The Yamaha LAN Monitor makes overall network topology clearly visible, giving the user a comprehensive overview of how multiple switches and Dante network devices are interconnected. Simply connect a computer to the nearest SWR2100P series switch and launch the Yamaha LAN Monitor software.
Snapshot Function Makes Troubleshooting Easy

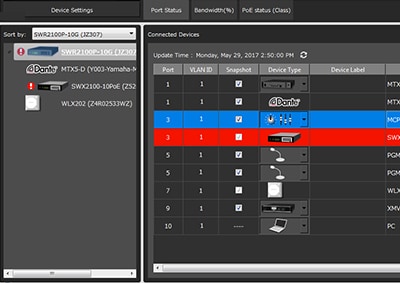

You can take a “snapshot” of the network status when set up as required. The software can then automatically keep track of the settings and alert you to any changes. You could take a snapshot of the network, and then you would be alerted if a cable is disconnected, if a device is turned off, or if a wrong connection is made prior to the performance, for example.
Enhanced Device ID with Icons, Labels and Comments

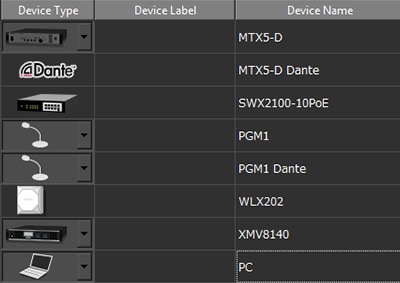

Identifying devices connected to a switch by only their IP or MAC address is a difficult and error-prone approach. Connected Dante devices are identified by a Dante icon as well as a device ID previously set up via the Dante Controller software. You can also enter additional info, such as the location of the device, in the Label and Comment fields.
Collectively monitor and remotely restart devices distributed over a wide area

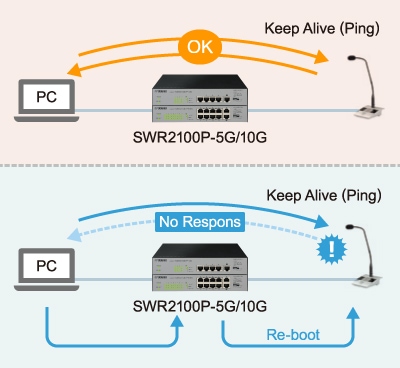

If the monitoring device does not respond to a Ping, it judges that a fault has occurred and automatically stops the PoE power supply to that device and then resumes it. This restarts the monitoring equipment and attempts recovery. By collectively managing the status of the devices distributed over a wide area, it can ensure that equipment management can operate far more smoothly.
Systems
System Example

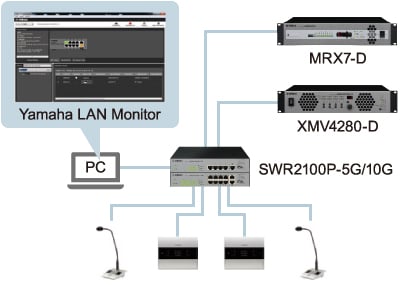

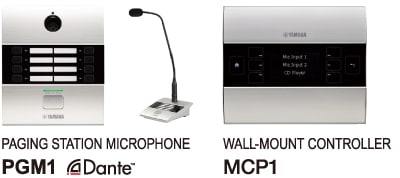

SWR2100P series switches not only make it easier to design and install audio network systems, but result in more convenient and controllable installations as well. A combination of MRX7-D and XMV devices is ideal for large-scale applications such as shopping centers. In this system, Dante compatible PGM1 units can be added to provide multiple remote paging stations. In the setup shown, a PGM1 unit located in the 3rd floor office is set up as a master station that will take priority over all other PGM1 units for emergency announcements. The VXC3F and VXS5 speakers allow high-impedance connections, making it possible to distribute multiple speakers over a wide area for broad coverage. A tap on the speakers allows output wattage to be easily changed to create the desired BGM and announcement balance, even after installation.
