Lineup

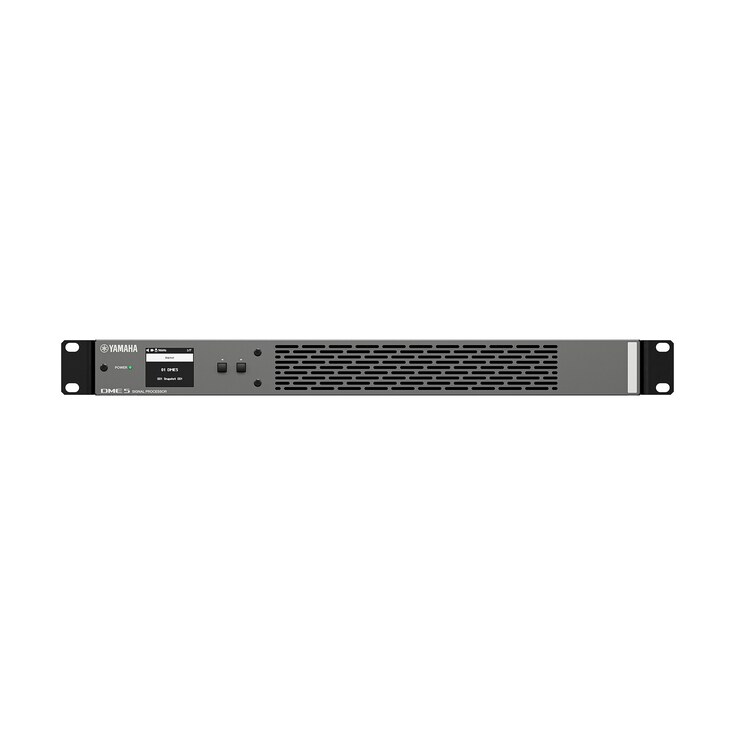

DME5Signal Processor
- Analog: 8 IN / 4 OUT
- 4 channels of FLEXIBLE I/O
- Dante: 64 IN / 64 OUT
- USB: 2 IN / 2 OUT for Audio (Type-C)
- GPI: 16 IN / 8 OUT
DME3Signal Processor
- Analog: 8 IN / 4 OUT
- 4 channels of FLEXIBLE I/O
- Dante: 16IN / 16 OUT
- USB: 2 IN / 2 OUT for Audio (Type C)
- GPI: 8 IN / 4 OUT
Features

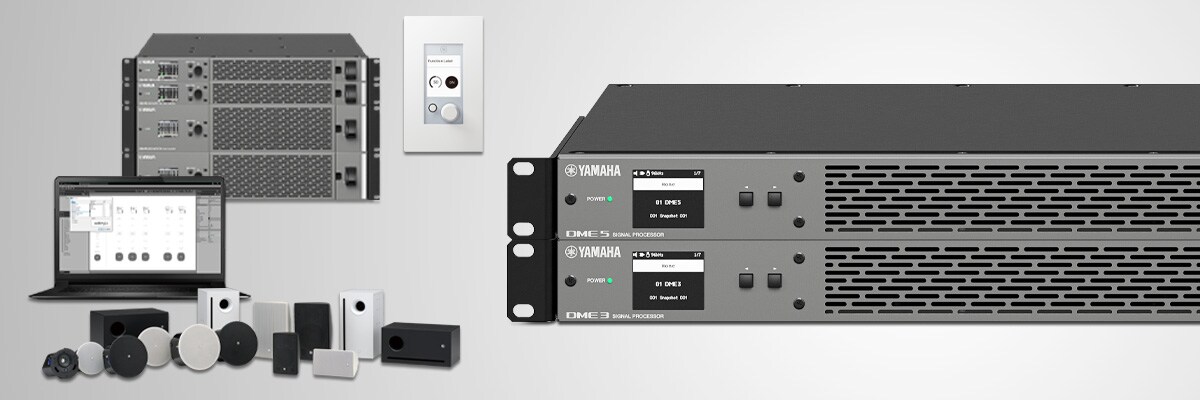

At the Heart of Yamaha Installation Systems
DME5 and DME3 processors deliver advanced signal processing, as the heart of Yamaha's Commercial Installation Solutions Ecosystem, enabling comprehensive control for solutions tailored to customers' needs. Their open-architecture format provides flexibility and scalability in designing audio systems, while the Conductor function strengthens integrated control across Yamaha devices.
The processors operate on a unified platform across the whole DME series, enhancing the user experience and making it easy to create systems of various sizes. Furthermore, both DME5 and DME3 models feature 96 kHz processing, which opens up connectivity for high-quality sound with other Yamaha products, such as digital mixers.
An Intuitive Graphical Interface for Sound System Design
ProVisionaire Design
ProVisionaire Design is a Windows-based software application that enables comprehensive and intuitive design of audio systems using compatible Yamaha products. The new Conductor function allows the DME5 and DME3 to be configured by software, together with other control and audio components.
ProVisionaire Control PLUS
ProVisionaire Control PLUS is a Windows application that provides unified remote control and monitoring of entire systems. Parameters assigned for each device by the ProVisionaire Design can be dragged and dropped to the ProVisionaire Control PLUS application. Control panels created by ProVisionaire Control PLUS can be exported to ProVisionaire Kiosk, which supports multiple platforms, such as Windows and iPad/iPhone devices.
Versatile remote control options to suit diverse needs
-

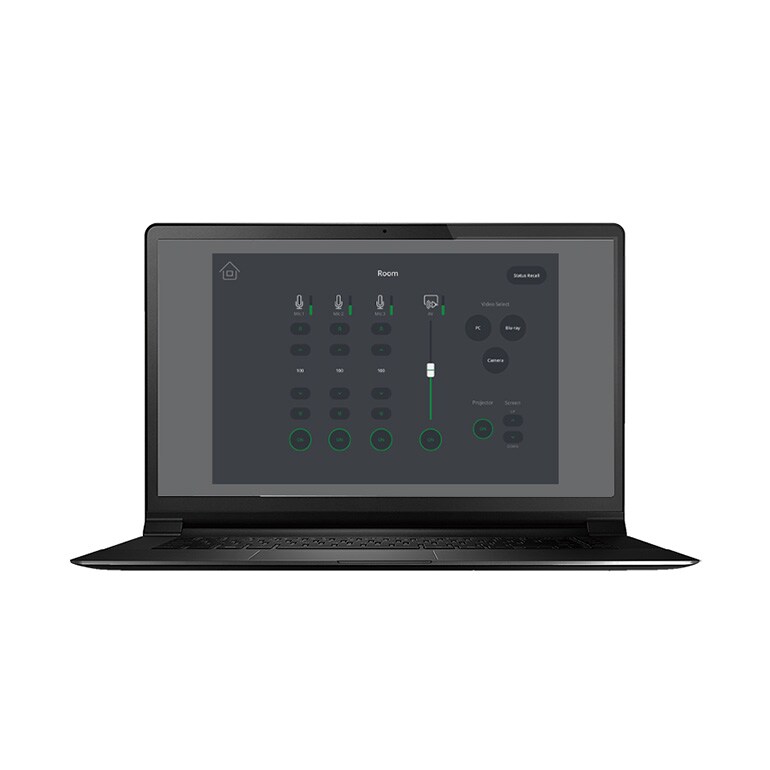

ProVisionaire Kiosk
-

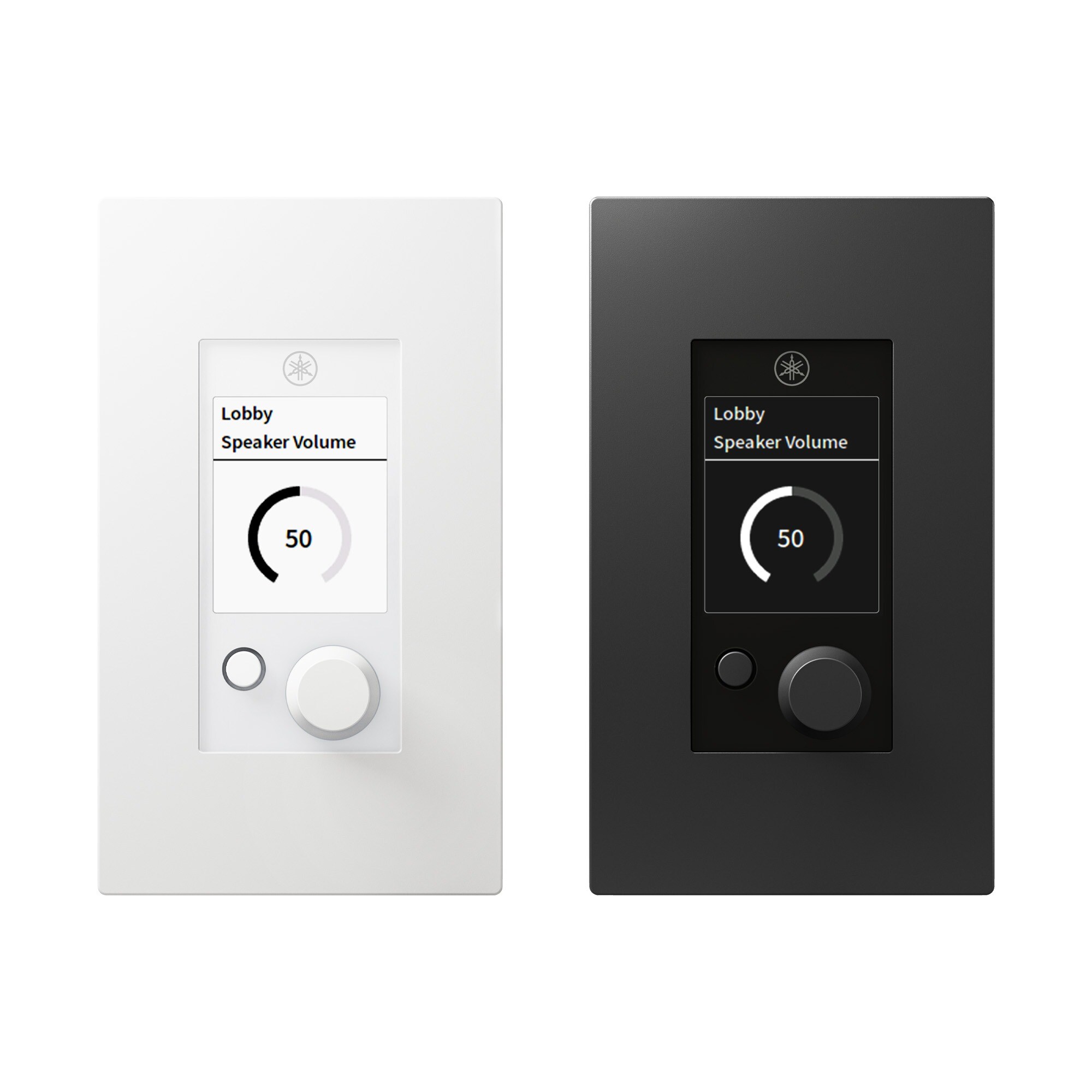

MCP2
-
MCP1
-

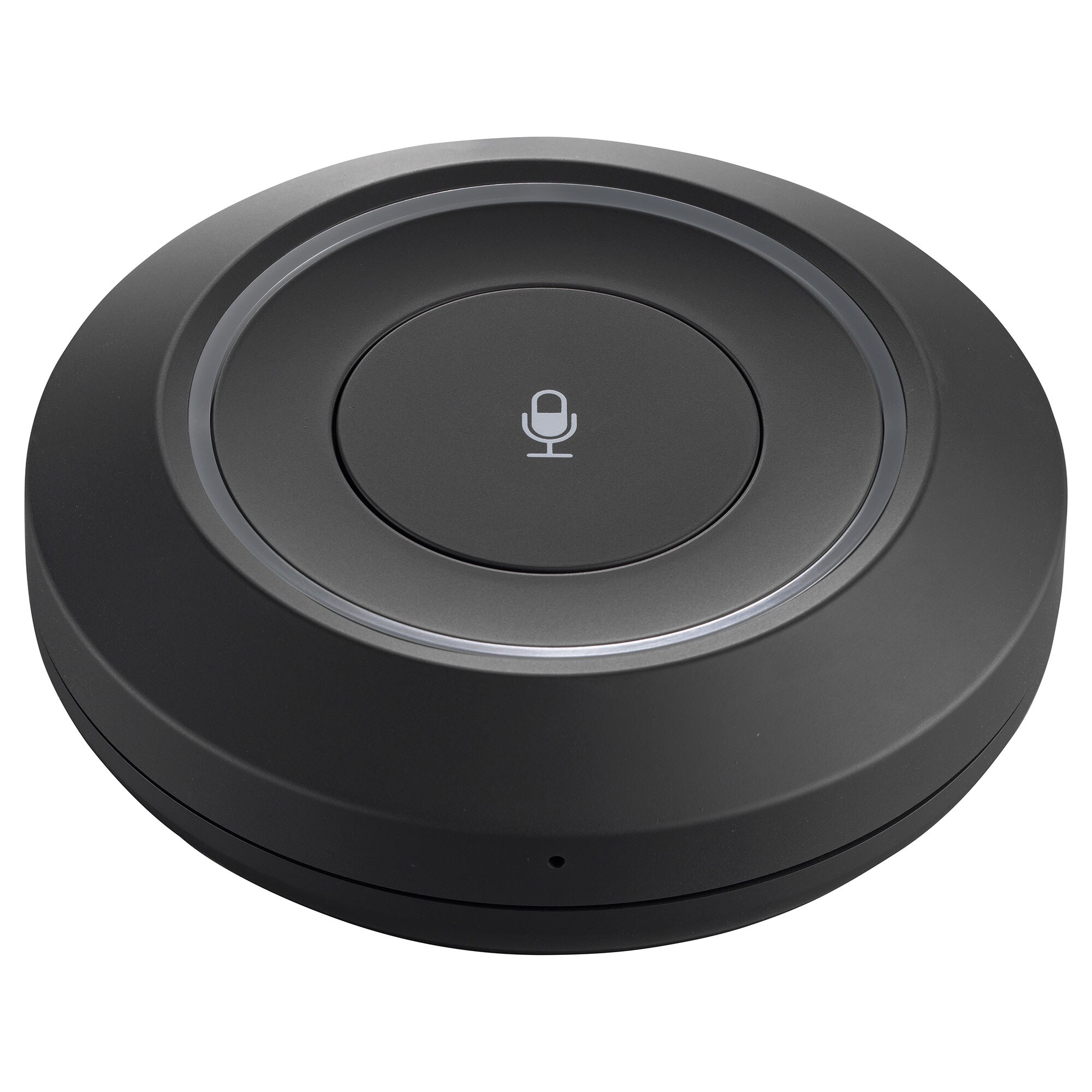

CTL-BN1
Commercial Installation Solutions Ecosystem
Simplified Control with New Conductor Feature for Complex Audio Systems
Conductor is a new feature of the DME series which orchestrates multiple Yamaha devices within the ecosystem. With this feature, logic for the whole audio system is easily configured by simply dragging elements in the ProVisionaire Design software. Other control components, such as compare and delay, which are included in the higher DME7 model, can now be used together, creating flexible setups, such as an automated power amplifier sequence, without the use of external devices.
Designed for Flexibility and Ease
4-ch FLEXIBLE I/O (Euroblock)
Without the need of additional hardware, four analog channels can be configured and used to match the requirements of the audio system. The channels can be assigned using the ProVisionaire Design software as inputs, outputs, or a combination of both.
USB Audio and Memory Interface
DME5 and DME3 models are equipped with two types of USB ports. The "TO HOST" port enables audio input and output by connecting a PC, making it suitable for web conferencing applications. The "TO DEVICE" port allows playback of MP3 and WAV files stored on a USB device, providing a convenient solution for background music.

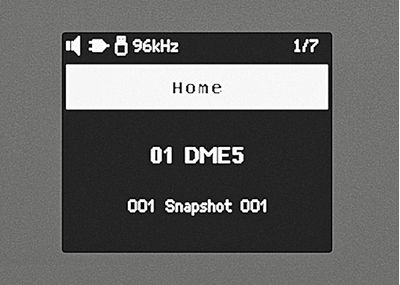

Informative LCD Display
A built-in LCD display provides quick access to key settings, including IP address, Flexible I/O configuration, and Network Mode settings. When an error log is displayed, the QR code shown links to the manual, enabling quicker troubleshooting of symptoms.

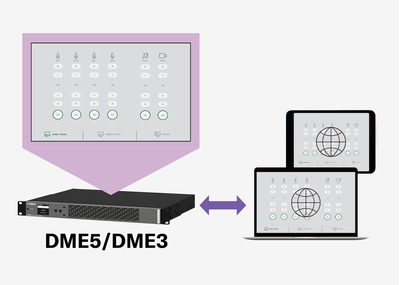

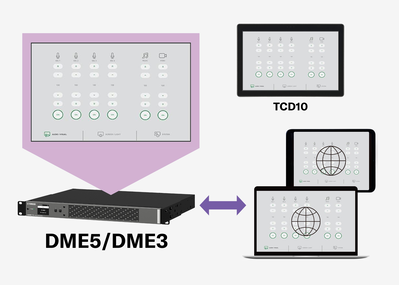

ProVisionaire Kiosk Web Server on DME
DME5 and DME3 processors carry web servers for the ProVisionaire Kiosk within the units. Controller files created with the ProVisionaire Control PLUS can be transferred to the DME processors, enabling the control of the units by accessing the control panel via a web browser. It only requires to enter the IP address on a browser onsite, making the setup process much quicker while realizing a secured solution.
*For details, refer to the "Custom Control Panels" in the Setup Guide and the Reference Manual.
