Lineup
CXS18XLF / CXS18XLFWSubwoofer
Perfectly suited for use with CZR full-range speakers, the CXS18XLF is a bass-reflex type subwoofer with extended low frequencies, outstanding clarity, and best-in-class 133dB SPL performance.
- 18” subwoofer with 4” Voice Coil
- High power 1000W (PGM) input
- Cardioid mode capable with processors or DSP onboard power amps
- Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
- SpeakON NL4MP x 3 (Parallel x2, Output x1)
- Dual-pole socket
- Optional speaker cover (SPCVR-DXS18X) and wheel kit (SPW-1)
- Durable Black or white finish
CXS15XLF / CXS15XLFWSubwoofer
Perfectly suited for use with CZR full-range speakers, the CXS15XLF is a bass-reflex type subwoofer with extended low frequencies, outstanding clarity, and best-in-class 131dB SPL performance.
- 15” subwoofer with 4” Voice Coil
- High power 800W (PGM) input
- Cardioid mode capable with processors or DSP onboard power amps
- Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
- SpeakON NL4MP x 3 (Parallel x2, Output x1)
- Dual-pole socket
- Optional speaker cover (SPCVR-DXS15X) and wheel kit (SPW-1)
- Durable Black or white finish
Features
HOW LOW CAN YOU GO?
The CXS XLF series is a range of passive subwoofers offering high power handling and outstanding very low- frequency sonic performance in a portable, lightweight, yet rugged design. For even more bottom end to round out your sound, adding CXS XLF Series subwoofers can extend your system's low-frequency performance dramatically down to a startling 29Hz for throbbing low frequency reproduction capability that’s sure to impress.
Finish
The fact that speakers must sound good goes without saying, but in permanent installations they have to look good and match the interior of the venue, too. Yamaha CZR Series Speakers and CXS XLF subwoofers are available in black or white.
Best in Class SPL performance
The CXS XLF Series of consists of two passive subwoofers, the CXS18XLF (18-inch) and the CXS15XLF (15-inch) which can extend the system’s low frequency down to a starting 29Hz for throbbing LF capability. Neutrik speakON NL4MP connectors provide safe, reliable and flexible connectivity. Equipped with two input/parallel connectors for multiple subwoofers plus one unique output connector for flexible set up to full-range CZR loudspeakers or cardioid mode setting. It is capable the simpler connection with single 4-pole speakON cable.
Intelligent processing to maximize system performance

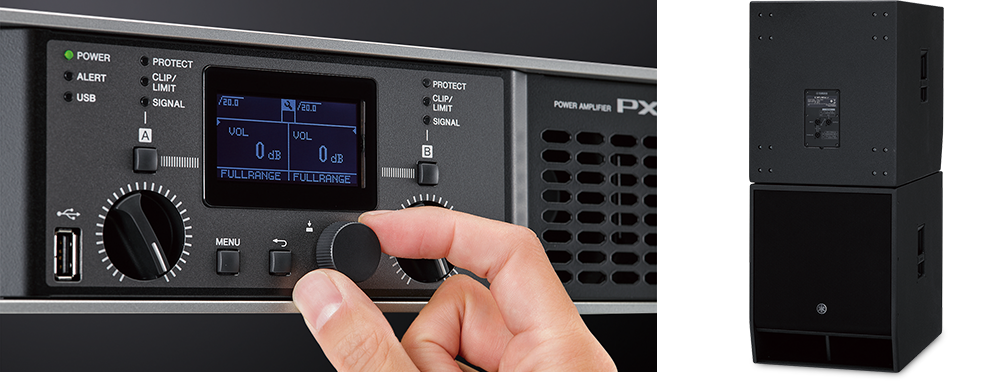

When used in combination with Yamaha PX Series amplifiers or other compatible signal processors, CXS XLF subwoofers can take full advantage of dedicated speaker processor tuning settings. Additionally, like the DXS XLF models, These are capable of use in cardioid mode provided the processor has the dedicated DSP settings (visit Yamaha pro-audio website for more information).
Premium materials. Road-tested toughness
-

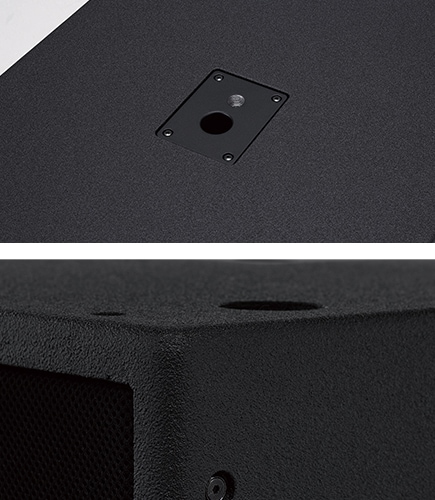

The specially designed enclosure features lightweight and robust premium plywood with a scratch-resistant, rugged Polyurea coating for improved portability and durability on the road. The CXS XLF are equipped with both a 35mm pole socket and an M20 threaded socket to support a full range cabinet.
Options
Functional Speaker Cover
The functional speaker covers that protect your speakers from unfavorable weather conditions during outdoor performances, dusty and dirty warehouse storage, or the rigors of equipment transport on the road.
- Trilaminar fabric of durable polyester, with inner PVC coat and cushion inside for impact suppression
- Front mesh allows sound reinforcement with the cover as well as ensures amp cooling
- Rear roof allows easy access to the rear panel with the cover on
- Handle slit allows easy access to the handles for carriage
- Cable pocket additional space for carrying cables
*NOTE: The covers do NOT guarantee water-drip protection.
Optional Wheel Kit (SPW-1)
For more fast and convenient setup of your DXS XLF / CXS XLF series and DXS series subwoofers, optional casters are available, featuring radial ball bearings that ensure quiet during your performance.
Functional Speaker Cover
SPCVR-DXS18XFunctional Speaker Cover
The functional speaker covers that protect your speakers from unfavorable weather conditions during outdoor performances, dusty and dirty warehouse storage, or the rigors of equipment transport on the road. *NOTE: The covers do not guarantee water-drip protection. (Compatible Speakers: DXS18XLF/18XLF-D, DXS18XLFW/18XLF-DW, CXS18XLF, CXS18XLFW)
- Compatible Speakers: DXS18XLF/18XLF-D, DXS18XLFW/18XLF-DW, CXS18XLF, CXS18XLFW
- Weight: 2.2kg; 4.9lbs
- Volume: 0.15m³
SPCVR-DXS15XFunctional Speaker Cover
The functional speaker covers that protect your speakers from unfavorable weather conditions during outdoor performances, dusty and dirty warehouse storage, or the rigors of equipment transport on the road. *NOTE: The covers do not guarantee water-drip protection. (Compatible Speakers: DXS15XLF/15XLF-D, DXS15XLFW/15XLF-DW, CXS15XLF, CXS15XLFW)
- Compatible Speakers: DXS15XLF/15XLF-D, DXS15XLFW/15XLF-DW, CXS15XLF, CXS15XLFW
- Weight: 1.6kg; 3.5lbs
- Volume: 0.11m³
Optional Wheel Kit
SPW-1Wheel Kit
For more fast and convenient setup of your DXS XLF / CXS XLF series and DXS series subwoofers, optional casters are available, featuring radial ball bearings that ensure quiet during your performance.
- Compatible Speakers: DXS18XLF/18XLF-D, DXS18XLFW/18XLF-DW, DXS15XLF/15XLF-D, DXS15XLFW/15XLF-DW, CXS18XLF, CXS18XLFW, CXS15XLF, CXS15XLFW, DXS18, DXS15mkII, DXS12mkII
