| General | Dimensions | W140 mm × D140 mm × H41.5 mm | |
|---|---|---|---|
| Weight | 310 g | ||
| Power Requirements | PoE (IEEE 802.3af) | ||
| Maximum Power Consumption | 4.5 W | ||
| In Operation | Temperature | 0 - 40 ℃ | |
| Humidity | 30 % - 90 % (No condensation) | ||
| Storage | Temperature | -20 - 60 ℃ | |
| Humidity | 20 % - 90 % (No condensation) | ||
| Indicator | Mute Indicator (Mute/Unmute), Status Indicator (Ring), Network Port Indicator | ||
| Maximum Device Number with RM-CR | 14 (without VXL1-16P, up to 16) | ||
| Accessories | Installation Manual, Table-top mounting adapter, 3 x Screw for mounting, 3 x spacer | ||
| Network Specifications | Ether1 | Dante Audio/Dante Control, Remote Control, Web UI, PoE | |
| Cable Requirements | Cat 5e or higher (STP) | ||
| Audio Specifications | Audio I/O | Dante | 1in x 2out, In1=AEC reference signal/Out1=output of beam mix, Out2= output of beam mix (simple processed) |
| Sampling Rate | 48 kHz | ||
| Bit Depth | 24 bit | ||
| Latency | 46 ms (except for toroidal directivity), 50 ms (for toroidal directivity), 20 ms (low-latency mode except for toroidal directivity), 23 ms (low-latency mode for toroidal directivity) | ||

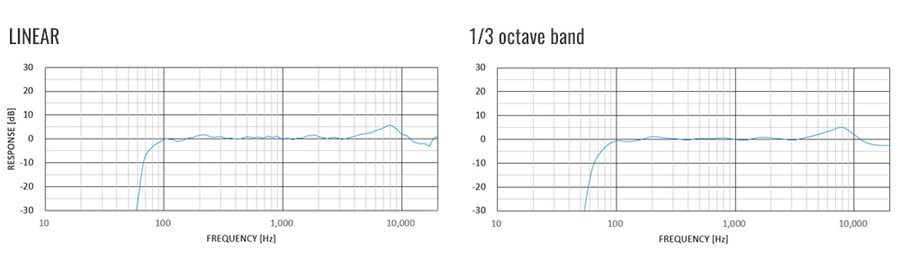

| Frequency Response | 160 Hz – 16 kHz (-10 dB) | ||
| Maximum Input Level of SPL (0dBFS) | 106.8 dB SPL | ||
| Self Noise | 6.3 dBA SPL | ||
| SN Ratio (Ref. 94 dB SPL at 1 kHz) | 87.7 dBA | ||
| Sensitivity | -12.8 dBFS/Pa | ||
| Dynamic Range | 100.5 dBA | ||

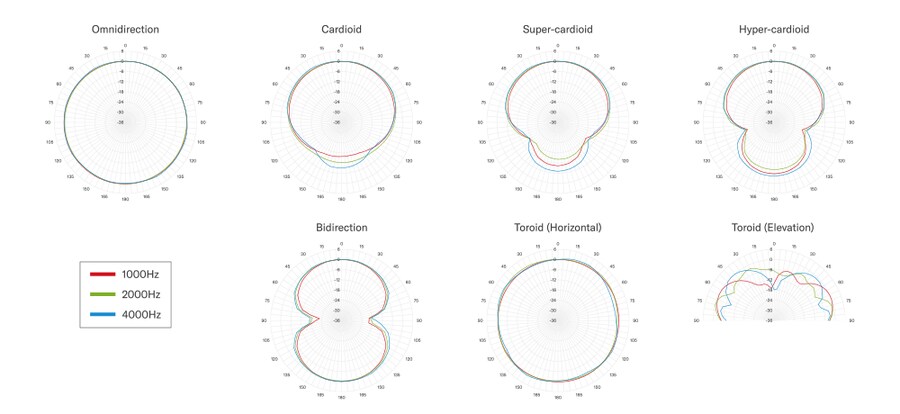

| Signal Processing | Auto Voice Tracking, Selectable Polar Pattern (Cardioid, Hyper-cardioid, Super-cardioid, Omnidirectional, Bidirectional, Toroid), Adaptive Echo Canceller, Noise Reduction, Dereverberation, Auto Mixer, Auto Gain Control, Parametric EQ, Output Gain Adjustment | ||
