Lineup

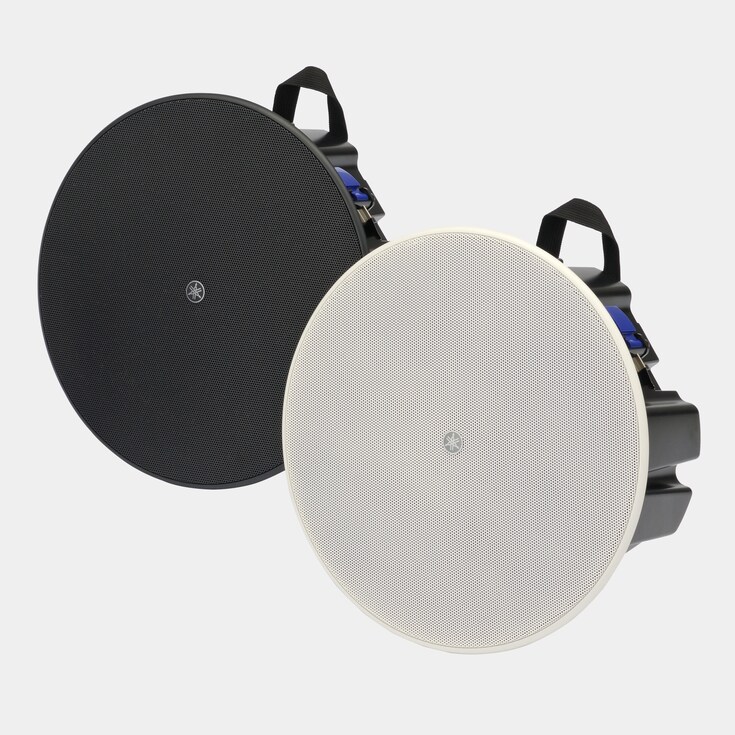

VXC5F / VXC5FWCeiling speaker
4.5" full-range low-profile ceiling speaker
- 4.5” full-range speaker unit
- Engineered for optimum BGM reproduction
- Low-profile design facilitates installation in limited ceiling spaces
- Direct support for low-impedance or high-impedance connections
- Built-in carrying band increases safety during installation
- Anti-drop tab mechanism provide secure temporary positioning during installation
- Double-threaded speaker clamp screws for speedy tightening
- Paintable grilles with magnetic catches
- Black and white versions available
- 3.1kg (6.8lbs), Ø324 x D143 mm (Ø12-13/16" x D5-11/16")

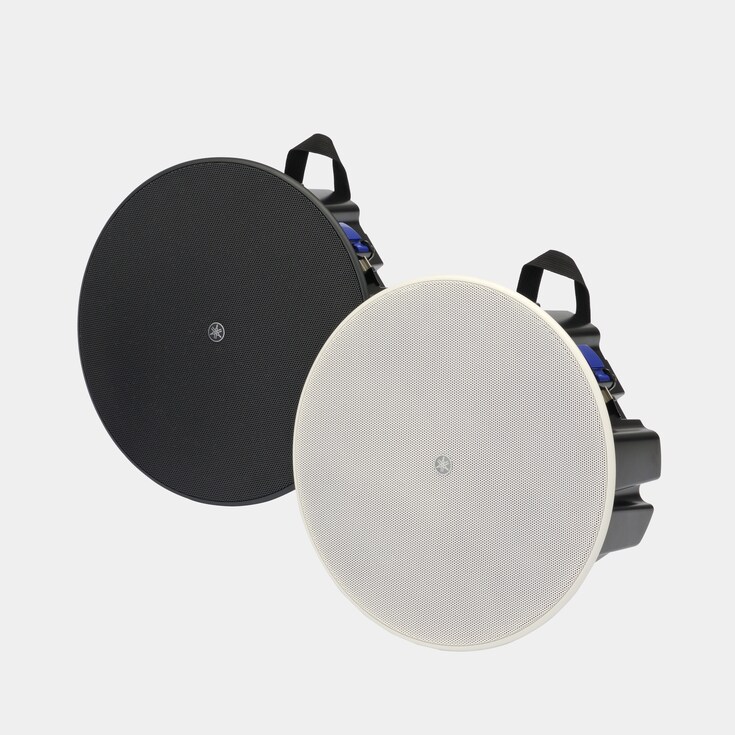

VXC3F / VXC3FWCeiling speaker
3.5" full-range low-profile ceiling speaker
- 3.5” full-range speaker unit
- Engineered for optimum BGM reproduction
- Low-profile design facilitates installation in limited ceiling spaces
- Direct support for low-impedance or high-impedance connections
- Built-in carrying band increases safety during installation
- Anti-drop tab mechanism provide secure temporary positioning during installation
- Double-threaded speaker clamp screws for speedy tightening
- Paintable grilles with magnetic catches
- Black and white versions available
- 2.5kg (5.5lbs), Ø285 x D112 mm (Ø11-1/4" x D4-7/16")
VXC2FB / VXC2FWCeiling speaker
2.5" full-range low-profile ceiling speaker
- 2.5” full-range speaker unit
- Engineered for optimum BGM reproduction
- Low-profile design facilitates installation in limited ceiling spaces
- Direct support for low-impedance or high-impedance connections
- Built-in carrying band increases safety during installation
- Double-threaded speaker clamp screws for speedy tightening
- Paintable grilles with magnetic catches
- Black and white versions available
- 1.7 kg (3.7 lbs), Ø225 x D89 mm (Ø8-7/8" x D3-1/2")
- Optional pendant-mount kit (PK-C4) and tile rail kit (AB-C2) are avaiable
VXC5F-VA / VXC5F-VAWCeiling speaker
EN54-24 certified version of VXC5F/VXC5FW speakers (4.5” full-range type) *Not available in some regions.
- Certified to European EN54-24 voice alarm system requirements
- 4.5” full-range speaker unit
- Engineered for optimum BGM reproduction
- Low-profile design facilitates installation in limited ceiling spaces
- Direct support for low-impedance or high-impedance connections
- Built-in carrying band increases safety during installation
- Anti-drop tab mechanism provide secure temporary positioning during installation
- Double-threaded speaker clamp screws for speedy tightening
- Paintable grilles with magnetic catches
- Black and white versions available
- 3.2 kg (7.1 lbs), Ø324 x D143 mm (Ø12-13/16" x D5-11/16")
VXC3F-VA / VXC3F-VAWCeiling speaker
EN54-24 certified version of VXC3F/VXC3FW speakers (3.5” full-range type) *Not available in some regions.
- Certified to European EN54-24 voice alarm system requirements
- 3.5” full-range speaker unit
- Engineered for optimum BGM reproduction
- Low-profile design facilitates installation in limited ceiling spaces
- Direct support for low-impedance or high-impedance connections
- Built-in carrying band increases safety during installation
- Anti-drop tab mechanism provide secure temporary positioning during installation
- Double-threaded speaker clamp screws for speedy tightening
- Paintable grilles with magnetic catches
- Black and white versions available
- 2.6 kg (5.7 lbs), Ø285 x D112 mm (Ø11-1/4" x D4-7/16")
PK-C4B / PK-C4WSpeaker accessory
Pendant-mount kit for VXC4/VXC2F
- Black and white versions available
- Paintable cosmetic cover
- *VXC4 units produced after October 2019 are compatible with the pendant-mount kit. Compatible units are identified by “PK-C” on the package.
AB-C2Speaker accessory
C-ring + Tile Rail kit for VXC2F, VC4B, VC4W
- Optional use for VXC2F, VC4B, VC4W in-ceiling installation
- The other VXC series F models (VXC5F, VXC3F) come with O-ring + Tile Rail kit
Features
Low-profile ceiling speakers designed for superior music reproduction
Music can play an integral role in defining the aesthetic and atmosphere of a commercial space, greatly enhancing the overall experience for customers and clientele. By combining Yamaha’s unrivaled acumen for developing state of the art musical instruments and professional audio technologies, with a flexible approach towards design and application, VXC-F ceiling speakers allow you to streamline the installation process and seamlessly integrate high-quality audio into a restaurant, retail, or professional environment. Featuring a newly designed speaker unit, optimally tuned for music playback, the VXC-F’s shallow, lightweight construction and flexible design can easily adapt to the strictest installation limitations, ensuring superb audio performance wherever they’re placed.
-

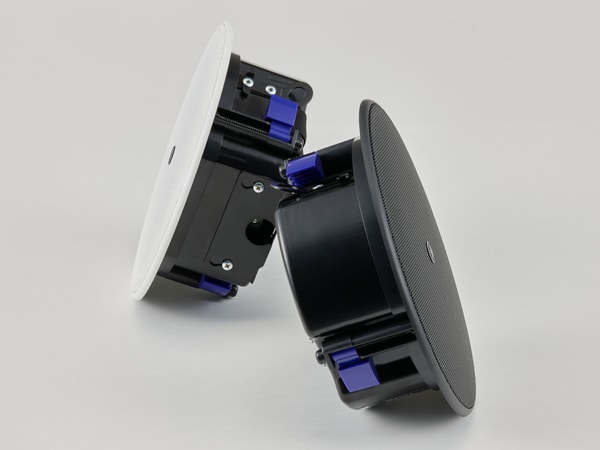

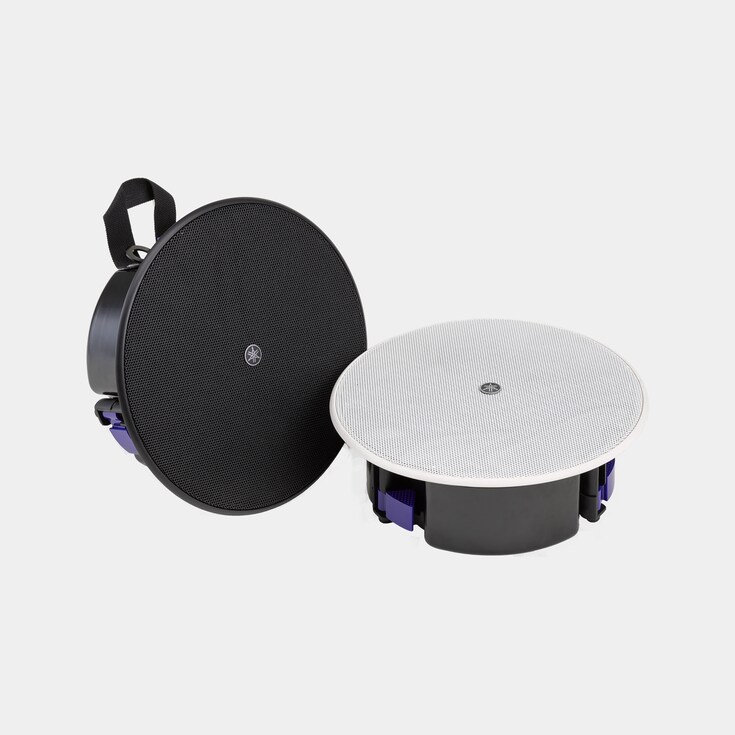

Featured Models: VXC2FB / VXC2FW
The VXC2F is the shallowest model in the VXC series, providing the most flexible installation solution.
-

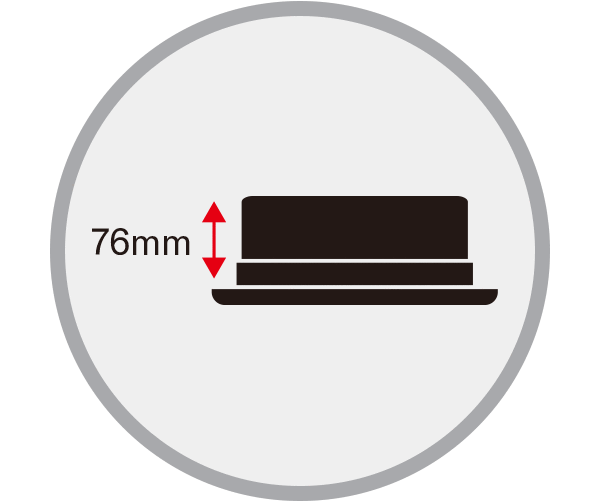

Super Slim Back Can
A back can less than 76.2mm/ 3 inches deep, which directly contributes to flexible installation.
-

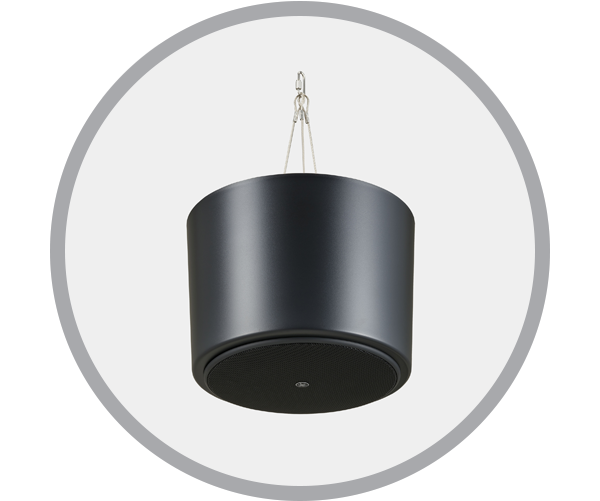

Pendant-mount Option (PK-C4)
Suspension hardware and loudspeaker cosmetic cover designed for hanging from open ceilings.
Delivers the Highest Quality Background Music
Yamaha’s deep understanding of music comes together with cutting edge technology in newly designed speaker units and enclosures, resulting in refined, natural music reproduction at any volume level without the midrange distortion that often plagues speakers of this type. The VXC-F's speaker unit size and back box volume have also been painstakingly matched to achieve well-balanced reproduction from low to high frequencies even at low output levels.
Recommended Applications
Restarurant, cafe, bar, retail stores, spa, museum, hotel lobby, ball room, etc.
Smart Design for Safer, Faster Installation
The VXC-F ceiling speakers feature low profile back boxes, reduced weight, and mechanical features that contribute to significantly safer, faster installation. And since these models support both low-impedance and high-impedance connection, the need for extra stock is minimized and systems can be designed to ideally meet the requirements of any application.
-
Carrying Band
-
Anti-Drop Tab
-
Hi-Z or Lo-Z
Both high-impedance and low-impedance connections are supported, and speaker wattage can be easily switched even after installation.
-
Low Profile
Reduced physical depth allows installation in ceilings where space is limited.
-
Lightweight
Reduced weight increases installation flexibility while lessening the burden on installation personnel.
-

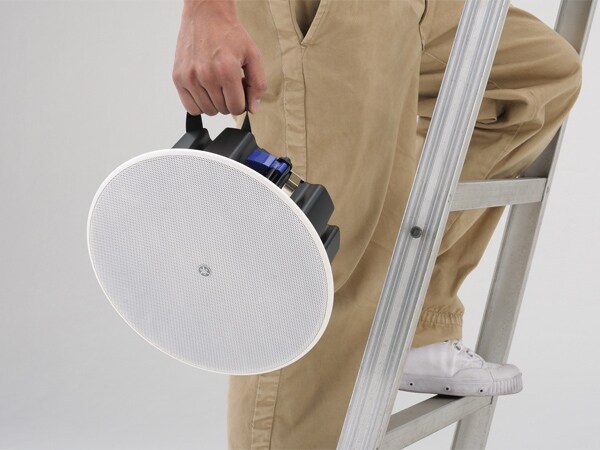

Portable
A built-in "carrying band" not only makes the speaker easy to carry around, but also increases safety when working on a stepladder.
-

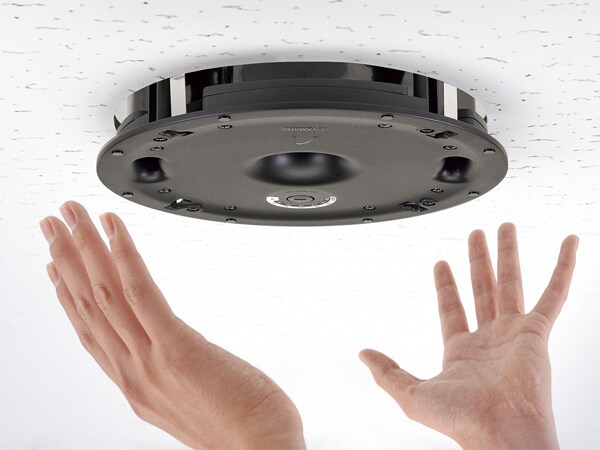

Secure
An anti-drop tab mechanism securely holds the speaker in place so that the installation can proceed safely and efficiently. There’s also a release lever that allows the speaker to be smoothly removed from the ceiling as required.
* Not available with the VXC2F
-
Fast
Double threaded screws used for the speaker clamp mechanism allow the clamps to be tightened twice as fast as conventional screws.
-
Streamlined
The supplied speaker grilles are firmly and elegantly held in place by powerful magnets. An anti-drop wire is also included.
-
Paintable
The supplied grilles can be painted any color to match interior decor.
EN54-24 Certified Versions with Uncompromised Performance
Yamaha also offers "VA versions" that meet European EN54-24 voice alarm system requirements. These models have been carefully tuned to retain the natural musical instrument and voice reproduction quality that is a feature in all VXC-F speakers, delivering refined BGM during normal operation while providing exceptional clarity for emergency broadcasts. The ability to support both music playback and emergency broadcasts with a single speaker type contributes to reduced system complexity and cost.
*Available models: VXC5F-VA/VXC5F-VAW/VXC3F-VA/VXC3F-VAW
*VA versions are not available in some regions.
Systems

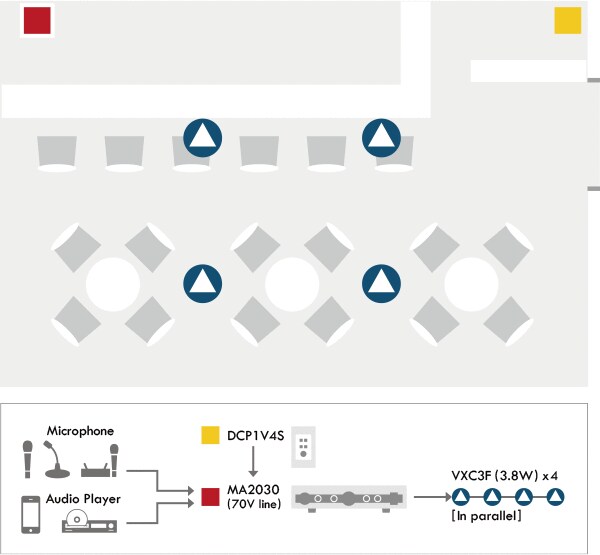

Cover large spaces with fewer units
The VXC Series “F models” employ small-diameter full-range speaker units that offer broad coverage, allowing large areas to be covered by a relatively small number of units. A shallow back box contributes to a low-profile design that installs easily in limited ceiling spaces. Combine VXC series F models with a compact mixer amplifier that can handle multiple line and microphone inputs such as the MA2030a, for example, and it becomes possible to create simple, flexible sound systems that deliver impressive sonic performance.

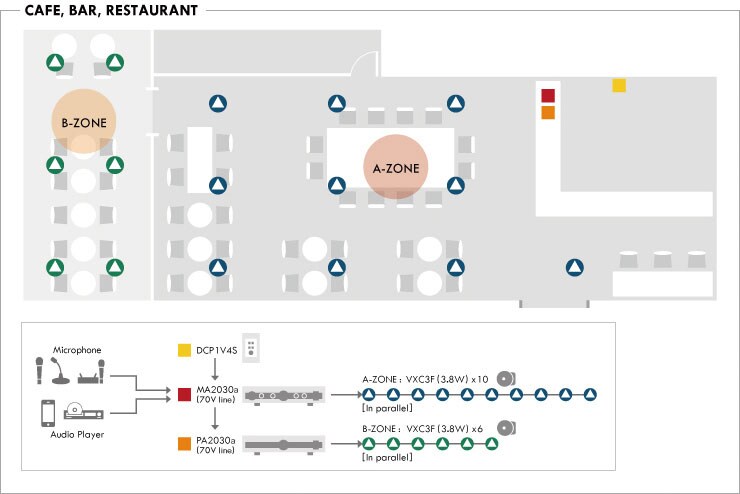

Connect many speakers to a single feed in high-impedance mode
VXC series speakers can be easily switched to high-impedance operation via a tap on the baffle, allowing a large number of speakers to be connected to a single high-impedance amplifier output. Since output power can be adjusted in four stages when connected to a 70V feed, or in three stages when connected to a 100V feed, output level can be easily altered after installation. With VXC series speakers and a mixer amplifier like the MA2030a, it is possible to create a streamlined, high-performance system that allows microphone use while BGM is being played, for example. Add a power amplifier such as the PA2030a for zoning capability.
