By following only a few steps, you can estimate the required number of speakers in an optimal way for your project.
Lineup
VXC8SB / VXC8SWCeiling subwoofer
8" ceiling subwoofer
- Sound and size ideally matched to the VXS and VXC series
- Band-pass design ensures smooth, distortion-free low-frequency extension
- Direct support for low-impedance or high-impedance connections
- Built-in carrying band increases safety during installation
- Anti-drop tab mechanism provide secure temporary positioning during installation
- Double-threaded speaker clamp screws for speedy tightening
- Paintable grilles with magnetic catches
- Black and white versions available
- 8.7kg (19.2lbs), Ø324 x D314 mm (Ø12-13/16" x D12-23/64")
- AB-C8S (sold separately) is required to secure safe installation of VXC8S
AB-C8SSpeaker accessory
O-ring + Tile Rail kit for VXC8S
- AB-C8S (sold separately) is required to secure safe installation of VXC8S
Features
Naturally Extended Lows Bring the Music to Life
VXC series “S model" ceiling subwoofers are ideal matches for VXS and VXC series speakers, smoothly extending the low frequency range with superb sonic quality for bigger, more true-to-life musical reproduction without spoiling interior design of architectures.
A Choice of Models for All Low-frequency Needs
Luxurious bass response can enhance musical presence and realism in a big way. The enclosures of VXC series S models incorporate a band-pass design to reduce unwanted vibrations and noise, making it possible to achieve a higher SPL.

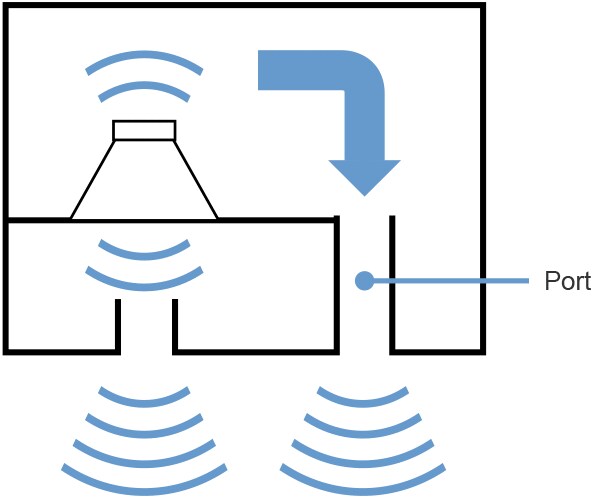

Band-pass structure of VXC8S
Smart Design for Safer, Faster Installation
The VXC-S ceiling speakers come with smart mechanical features that contribute to significantly safer, faster installation. And since these models support both low-impedance and high-impedance connection, the need for extra stock is minimized and systems can be designed to ideally meet the requirements of any application.
-
Carrying Band
-
Anti-Drop Tab
Hi-Z or Lo-Z
Both high-impedance and low-impedance connections are supported, and speaker wattage can be easily switched even after installation.
Portable
A built-in "carrying band" not only makes the speaker easy to carry around, but also increases safety when working on a stepladder.
Secure
An anti-drop tab mechanism securely holds the speaker in place so that the installation can proceed safely and efficiently. There’s also a release lever that allows the speaker to be smoothly removed from the ceiling as required.
Fast
Double threaded screws used for the speaker clamp mechanism allow the clamps to be tightened twice as fast as conventional screws.
Streamlined
The supplied speaker grilles are firmly and elegantly held in place by powerful magnets. An anti-drop wire is also included.
Related Software
Systems
System Example: Cafe
With VXC2F speakers and a mixer amplifier MA2030a, it is possible to create a streamlined, high-performance system that allows microphone use while background music is being played. Add a power amplifier PA2030a and a ceiling subwoofer VXC8S to create enriched ambient.
