VXL Series

Lineup

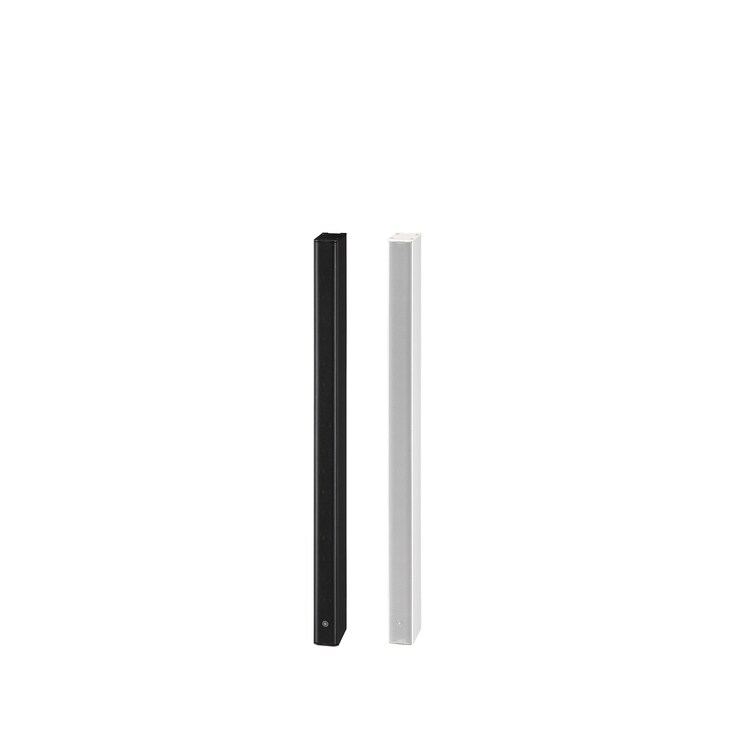

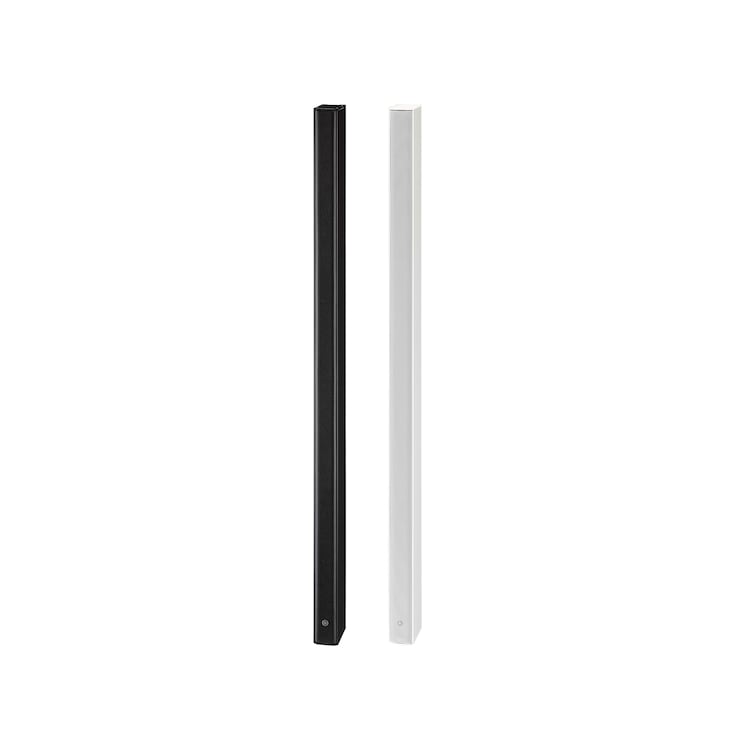

VXL1B-24 / VXL1W-24

Slim line array speaker with 24 x 1.5” drivers

1.5 inch (3.75 cm) full-range speaker units with neodymium magnets
Wide horizontal dispersion for uniform SPL over a wide area
The vertical coverage can be selected from two modes, Normal and Wide
Slim design complements any interior décor
Available in basic black or white
Enclosures can be painted to match surroundings
Wall mount bracket supplied
Optional hardware for a wide range of installation needs

VXL1B-16 / VXL1W-16

Slim line array speaker with 16 x 1.5” drivers

1.5 inch (3.75 cm) full-range speaker units with neodymium magnets
Wide horizontal dispersion for uniform SPL over a wide area
The vertical coverage can be selected from two modes, Normal and Wide
Slim design complements any interior décor
Available in basic black or white
Enclosures can be painted to match surroundings
Wall mount bracket supplied
Optional hardware for a wide range of installation needs

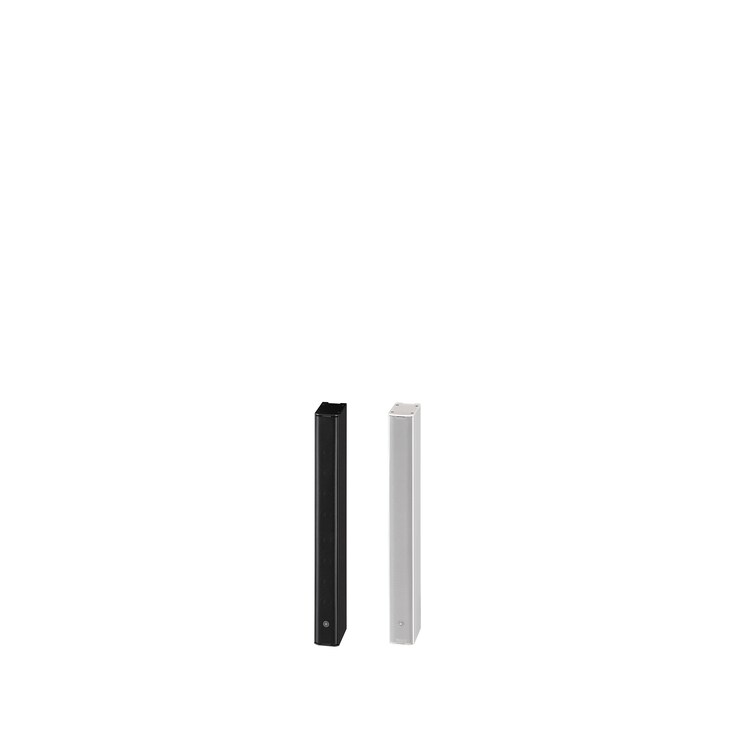

VXL1B-8 / VXL1W-8

Slim line array speaker with 8 x 1.5” drivers

1.5 inch (3.75 cm) full-range speaker units with neodymium magnets
Wide horizontal dispersion for uniform SPL over a wide area
Slim design complements any interior décor
Available in basic black or white
Enclosures can be painted to match surroundings
Wall mount bracket supplied
Optional hardware for a wide range of installation needs

VXL1B-24-WR / VXL1W-24-WR

Slim line array speaker with 24 x 1.5” drivers

Weather-resistant model
IP55
1.5 inch (3.75 cm) full-range speaker units with neodymium magnets
Wide horizontal dispersion for uniform SPL over a wide area
The vertical coverage can be selected from two modes, Normal and Wide
Slim design complements any interior décor
Available in basic black or white
Enclosures can be painted to match surroundings
Optional dedicated bracket for outdoor installations

VXL1B-16-WR / VXL1W-16-WR

Slim line array speaker with 16 x 1.5” drivers

Weather-resistant model
IP55
1.5 inch (3.75 cm) full-range speaker units with neodymium magnets
Wide horizontal dispersion for uniform SPL over a wide area
The vertical coverage can be selected from two modes, Normal and Wide
Slim design complements any interior décor
Available in basic black or white
Enclosures can be painted to match surroundings
Optional dedicated bracket for outdoor installations

VXL1B-8-WR / VXL1W-8-WR

Slim line array speaker with 8 x 1.5” drivers

Weather-resistant model
IP55
1.5 inch (3.75 cm) full-range speaker units with neodymium magnets
Wide horizontal dispersion for uniform SPL over a wide area
Slim design complements any interior décor
Available in basic black or white
Enclosures can be painted to match surroundings
Optional dedicated bracket for outdoor installations

Option

WMB-L1B / WMB-L1W

Wall Mount Bracket for VXL series

Compatible Models: VXL1-24/16/8 and VXL1-16P
Wall mount bracket with vertical and horizontal angle adjustment capability

VCB-L1B

Vertical Coupling Bracket for VXL series

Compatible Models: VXL1-24/16
Expansion bracket for vertical VXL series speaker coupling

VCSB-L1B / VCSB-L1W

Vertical Coupling Support Bracket for VXL series

Compatible Models: VXL1-24/16
Support bracket for vertical VXL series speaker coupling with downward angle adjustment capability

HCB-L1B

Horizontal Coupling Bracket for VXL series

Compatible Models: VXL1-24/16/8 and VXL1-16P
Expansion bracket for horizontal VXL series speaker coupling

PWMB-L1B-WR / PWMB-L1W-WR

Pole and wall mount bracket for VXL1-24/16/8-WR

Compatible Models: VXL1-24/16/8-WR
Pole and wall mount bracket with vertical and horizontal angle adjustment capability for outdoor installation
Weather-resistant

PA-L1B

Pole Mount Bracket for VXL series

Compatible Models: VXL1-24/VXL1-16/VXL1-8 and VXL1-16P
Expansion adapter to pole mount the VXL series speaker
Dimensions 46.5(W) × 190(H) × 98(D) mm
Suitable for pole diameter of 35 mm
Net weight 0.60 kg

ST-L1Ba / ST-L1Wa

Speaker transformer for VXL series

Compatible Models: VXL1-24/16/8 (-WR)
Speaker transformer for high-impedance systems
Weather-resistant, IP55 rating

Features

Sleek. Smart. Sound.

VXL series line array speakers offer a unique combination of outstanding sound quality and slim form that is ideal for a variety of environments.

Line array speakers offer excellent projection as well as uniform volume and sound quality over a wide service area, making them a great choice for multipurpose halls, lecture halls, conference rooms, and other facilities that require maximum intelligibility throughout the listening area.

The VXL series includes three models with different numbers of speaker units. Models can be combined to optimally serve a variety of spaces and situations. Furthermore, IP-55 rated Weather-resistant Models (WR) are perfect for outdoor applications.

Slim 54-millimeter-wide cabinets and elegantly curved grille designs blend beautifully with any décor while delivering uniform, top-quality sound for speech and music reproduction in a wide range of applications.

Slim Line Arrays Blend High Sound Quality with Visual Elegance

The VXL series cabinets are only 54 millimeters wide, presenting a slim, elegant profile that blends effortlessly with any décor. The key to the slim dimensions of these remarkable speakers is their compact 1.5-inch full-range driver units. Of course visual appeal is not the only goal. These small drivers have been painstakingly designed with neodymium magnets and top-quality materials throughout to deliver natural response right down to 77 Hz* , for full-range performance that is ideal for speech as well as music reproduction.

*In the case of VXL 1 - 24

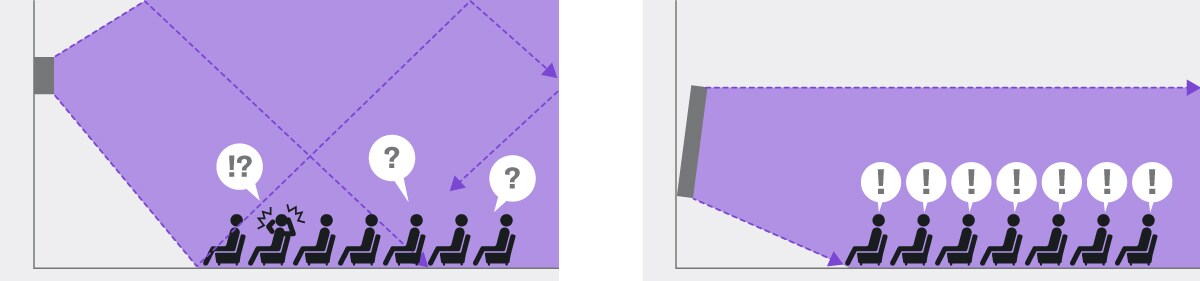

High-performance drivers with neodymium magnets are arranged vertically to create a line source that achieves outstanding projection. The sound does not spread in the vertical direction and unnecessary reflection can be avoided, so VXL can delivers high clarity sound to the target area.

The following is a quick reference guide for appropriate selection of the VXL series.

For more detailed simulation, refer to the VXL Selection Assistant.

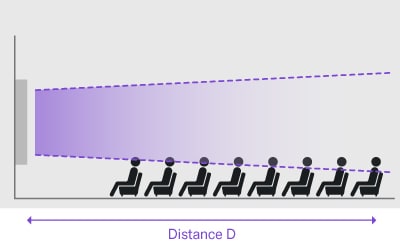

D: Distance from the speaker to the farthest audience*

*The SPL difference between the nearest and the farthest is within 10dB SPL.

	Distance D
VXL1-8	9.5m (31 feet)
VXL1-16	13.5m (44 feet)
VXL1-24	25m (82 feet)

*Distance from the speaker to the nearest audience: 3m

*Distance from the floor to the bottom of the speaker: 1.1m

For much larger space, the use of double speakers in vertical coupling is recommended.

	Distance D
VXL1-16 + VXL1-16	33m (108 feet)
VXL1-24 (upper) + VXL1-16 (lower)	42m (138 feet)
VXL1-24 + VXL1-24	46m (151 feet)

*Distance from the speaker to the nearest audience: 4m

*Distance from the floor to the bottom of the speaker: 1.1m

Excellent Scalability

The compact driver units used in the VXL series contribute to wide horizontal dispersion. A rear-panel switch allows vertical dispersion to be expanded downward so that a wide range of applications can be accommodated.** Sound pressure level and coverage can be further adjusted as required by combining models with different numbers of driver units, expanding the range of potential applications.

** VXL1-8 vertical dispersion is fixed

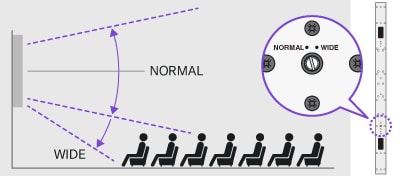

Vertical Coverage Expansion

Vertical coverage can be adjusted via a rear-panel switch. Setting the switch to “Wide” expands the dispersion angle in the downward direction only, improving coverage at the front of the listening area in situations where the speakers are installed at a high location.

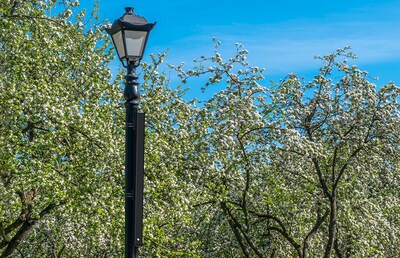

Weather-resistant Models

The VXL lineup includes weather-resistant models designed to be used safely outdoors. With a structure that prevents penetration from rainwater, the VXL-WR achieved an IP55 protection rating. Newer enhanced coating processes and speaker unit materials have been implemented to improve UV resistance and rust prevention performance.

More advanced anti-rust measures have been applied to the weather-resistant models, such as replacing screws on surfaces exposed to the environment with highly rust-resistant stainless steel, and changing assembly and manufacturing processes to prevent damage to the coating that protects the main body from rust.

*Do not install this product in harsh environments that exceed the applicable IP protection rating, or where salt damage or corrosive gases are generated, as this may cause failure.

Suitable applications

- BGM for outdoor terrace of restaurants and cafes, or for theme parks

- Public outdoor spaces

- Religious facilities such as mosques

Do not install this product in the following locations

- Locations that may be affected by salt damage

- Locations that may be affected by corrosive gas

- Locations that may be concerned about loosening screws by a lot of vibration

- Locations that may be subjected to extremely high temperatures and humidity, in particular, locations in which condensation easily forms

- Locations that may be subjected to extremely low or high temperatures, or where the ambient temperature is outside the range of the recommended operating temperature

Operating temperature range: -10°C to 50°C

- Locations in which snow accumulation or falling packed snow is expected

*We do not guarantee that there will be no aging or malfunction of this product in environments other than those mentioned above.

Outdoor mount bracket

Dedicated mount bracket with weather resistance and strength for outdoor use are available.

- PWMB-L1B/W-WR

Flexible Installation Options

In addition to the supplied wall-mount brackets, a comprehensive range of optional hardware is available for convenient system mounting and setup in just about any environment.

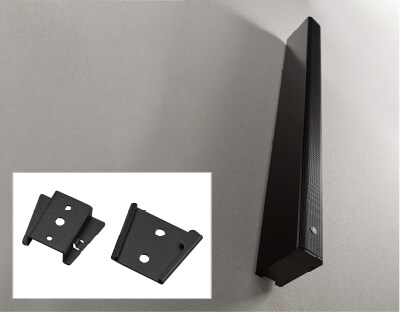

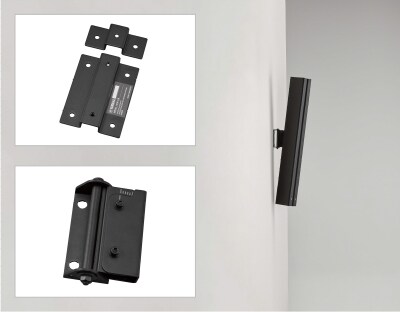

VXL1-16 with included bracket

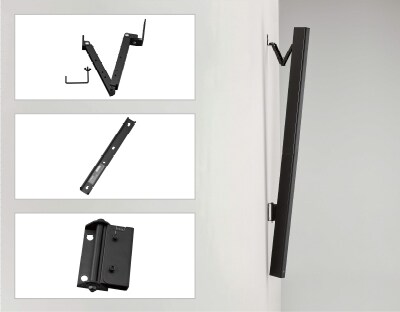

2 x VXL1-16 with VCSB-L1, VCB-L1 and WMB-L1
2 x VXL1-16 with HCB-L1 and WMB-L1

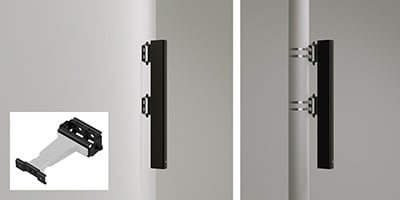

VXL1-16 with PWMB-L1-WR *Pole bands are not included
VXL1-16 with PWMB-L1-WR (Bracket for 2-axis adjustment of a single array dedicated for outdoor-use)

*Pole bands are not included

Download Reference Table (PDF)

Dedicated Speaker Presets

The VXL series come with dedicated speaker presets to maximize their sound performance according to the type of installation and application.

Find the presets files from here.

Speaker Presets (File name)	Description
VXL1-**		For a single speaker, mounted on the wall.
VXL1-**_spch		For a single speaker, mounted on the wall. Optimized for speech use.
VXL1-**_sub		For a combination with VXS10S/VXS10ST subwoofer, mounted on the wall. Optimized for music playback.
VXL1-**_free		For a single speaker, mounted on the pole.
VXL1-_hc		For double speakers in horizontal coupling, mounted on the wall.
VXL1-**_##vc		For double speakers in vertical coupling, mounted on the wall.

Systems

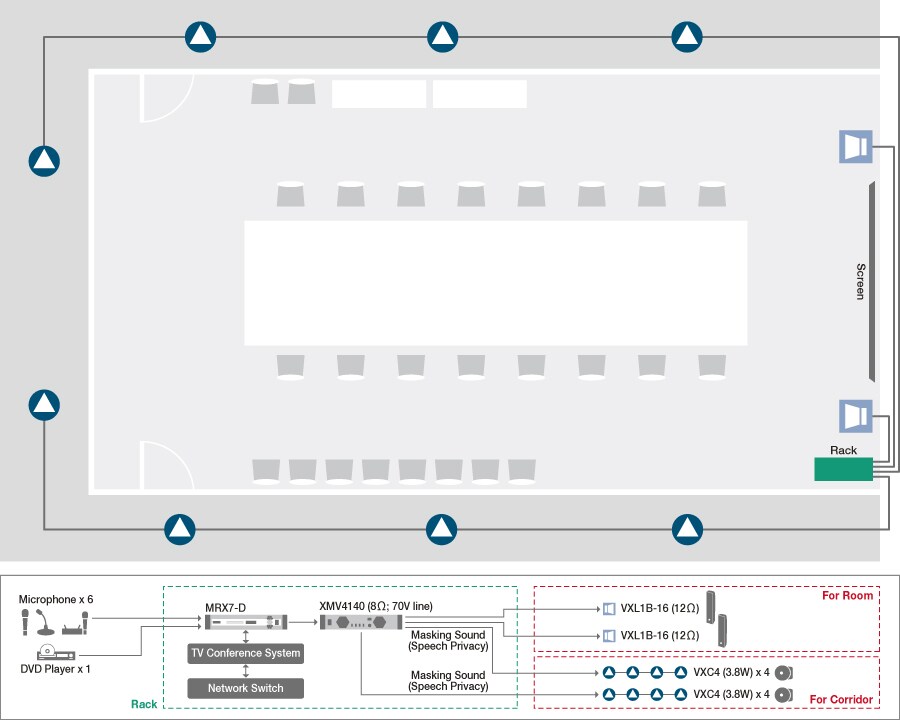

System Example 1: Conference Room

This system has been designed to provide optimum sound for meetings and conferences, making use of the excellent projection provided by the VXL1-16 to ensure ample volume and clarity right to the back of the room. The slim line-array profile adds sophisticated visual appeal to the room’s décor.

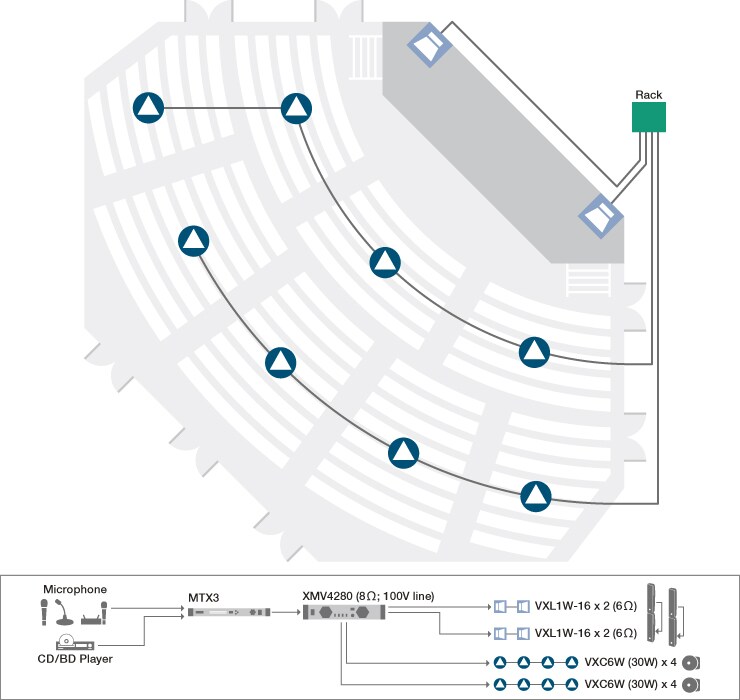

System Example 2: Lecture Hall

Vertically coupled line array speakers easily provide full, uniform coverage in a sloping lecture hall where a single speaker would not be sufficient.
